Portable Dental Mobile Delivery Unit Air Compressor



Dental High Speed &Slow Low Speed Handpiece Kit 4 Holes

High speed handpiece Features:

- NSK style Pana Max high speed handpiece

- 4-Hole standard push button handpiece

- Single-way water spray

- It has unique appearance design and fluent outline.

- Smooth as silk, it has excellent texture.

- With people-friendly design, easy for operation.

- With best quality cartridge, easier for cleaning.

- With high-speed turbine rotation, it has better performances.

- Chucking power of chucking needle is 20N-45N.

- It is noise-free and stable.

- Applicable Bur: 1.6mm and should be conformed to ISO standard.

- Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25- 30 pressure atmosphere.

- Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.

- It is only for people who have dentistry medical qualification.

Specification:

Description:

Standard Push button type, high speed handpiece, Single-way water spray

Needle Change Type

Push button

Air Pressure

180~250 KPa (1.8~2.5 kgf/cm2)

Water Pressure

198Kpa (2 kg)

Rotation Speed

370,000-420,000 rpm

Head Hight

13.14 mm

Head Diameter

φ11.2 mm

Bur Applicable

φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

Noise

≤70dB



Low speed kits Features:
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

Contra angle handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

Straight Nosecone
- Working pressure: 0.3MPa ;
- 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.

Air Mortor EX-203C
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- 4 hole
- Max speed 20,000 min-1
Specifications

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm)

Air Wastage:(N1/min)

2.5

22,000

42

3

25,000

51

4

27,000

72



Packing List:
- High speed handpiece push button 4 holes : 2 each
- E-type air motor 4 Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- Oil spray nozzle: 1 each
- CAP Spanner: 1 each

**********************************************************************

Portable Dental Delivery Unit Air Compressor Suction System 4Hole

Features:

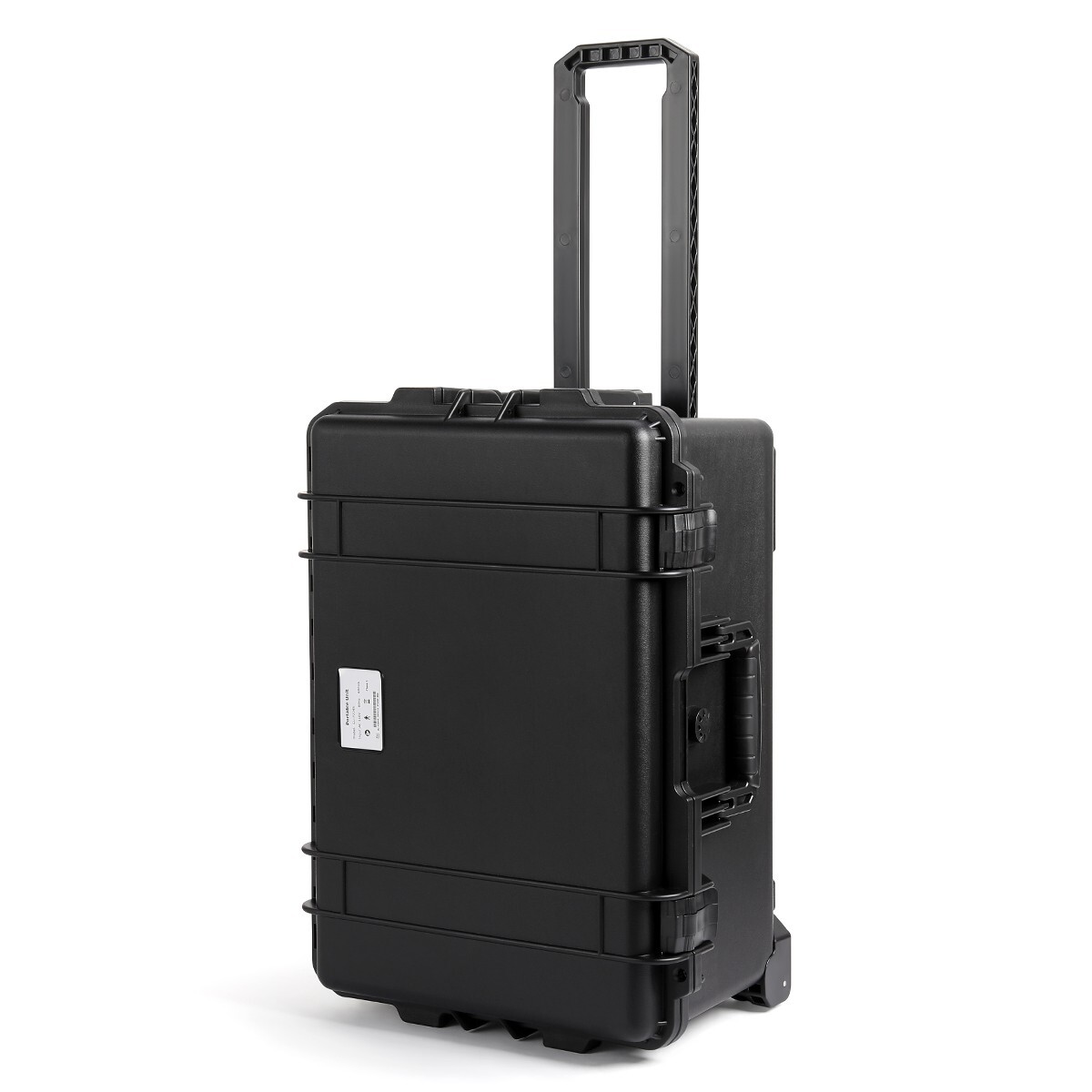

Easy to Carry and Move: The portable case with a pull-out handle and wheels is lightweight for dentists to move it with ease.

Compact and Space-Saving: The compact treatment unit comes with a storage bag to save space.

Fully Functional: The device includes dental treatment related systems such as air system, water system, suction, and drainage systems.

Simple to Operate: Easily assembled and powered, the unit operates with a simple foot pedal control.

Steady Performance: The robust case withstand drops, and the premium motor ensures reliable performance over more than 20,000 hours.

Easy to Maintain: The oil-free motor requires no lubrication, and the drainage bottle is easy to detach and disinfect.



Intended Use:

Dental Hospital, Dental Clinics, Army and Outdoor Dental Care or Treatment Establishment.



"Dental Unit Portable w/ Air Compressor P206S

Parameters:

shell of the product is made of black high-strength engineering plastic explosion-proof box

Model: P206S

* Volt./Hz: 110V/60Hz

Power: 600 W

Air Flow: 118 L/min

Water Bottle: 600 mL

Drainage Bottle: 1000 mL

Noise Level: 48 dB

Working Pressure: 0.5-0.6 Mpa

Net weight: 30 kg

Dimension: 41 x 29 x 63 cm

Gross Weight：34KG

package size：52*40*70CM



Accessories/Specification:

- 1 x 3-Way Syringe

- 1 x Saliva ejector with adjustable and powerful suction

- 2 x Handpiece Tubing(4 Hole)

- 1 x Ultrasonic Scaler

- 1 x Curing Light

- 1 x  Self-contained clean water supply system (1000ml)

- 1 x Self-Contained Stainless Steel Air Bottle

- 1 x  Self-contained drainage bottle (1000ml)

- 1 x Self-contained oil free compressor (600W motor)

- 1 x Foot Control System

"* 1* Self-contained bag for storage to save your space;

"Please note:It comes not include any handpiece.

"Note: We will send the 4 Hole by default, if you need 2 hole, please leave us a message!
